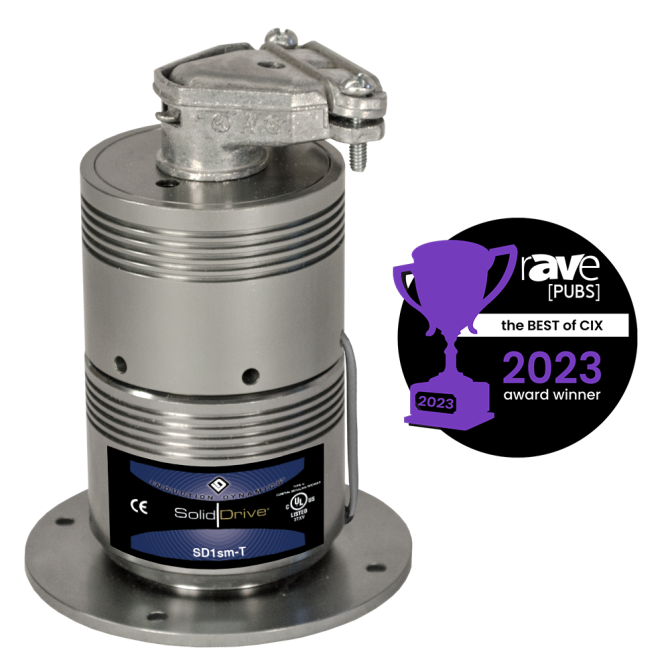

SD-1SM-T Wood Surface Mount Actuator with Transformer in Titanium

£ Trade

Wood Surface Mount Actuator with Transformer in Titanium
• Hidden planar-source audio technology evenly distributes sound masking signals throughout the listening space
• Broad and even coverage of up to 15 feet per unit in a drywall installation means a few units cover a large area
• 86 Max SPL (drywall) and 120° dispersion pattern across the upper registers of the frequency spectrum

pdf-download-btn



SKU: SD-1SM-T Categories: , ,

Description

The SD1sm-T can be installed onto wood and other hard surfaces. For best results, our engineers recommend trying out the SolidDrive on the desired surface before installing. Each SD1sm-T is designed for one channel of audio. SolidDrive utilizes patent-pending dual-voice coil technology in an aluminum enclosure to transfer acoustic energy to any substrate.

Using high-powered neodymium magnets and dual symmetrically opposed motors, SolidDrive converts audio signals into vibrations that transfer into solid surfaces through direct contact. The result is high-quality, full-range sound that radiates from the entire surface with a frequency response of 70 Hz to 15 kHz. The symmetrically opposed neodymium magnets and specifically engineered mounting hardware provide hidden planar-source acoustics and uniformity throughout the listening space.
