Description

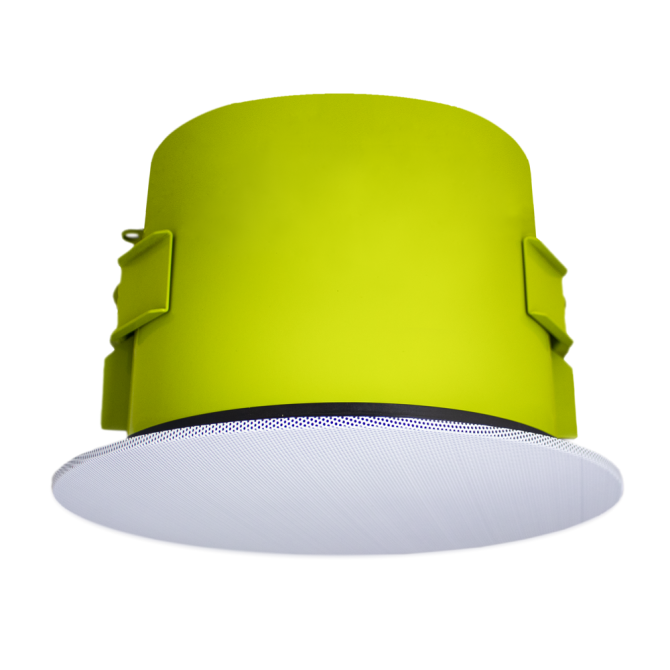

The SoundTube IPD-CM82-BGM-II-WH Dante®-addressable coaxial in-ceiling speaker incorporating one 8.0 inch (203 mm) polypropylene woofer with rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter. BroadBeam Ring™ technology and a tuned port on the baffle provide smooth off-axis performance, mid-range clarity and bass response to 55 Hz (-10 dB).
Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch.
The IPD-CM82-BGM-II-WH may also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Mounting hardware is included and features SoundTube’s SpeedWing™ constant-tension fixed-wing mounting system, which accommodates material thicknesses ranging from 0.035 in (0.9 mm) to 2.38 in (60.4 mm). UL 60065 and 2043 listed. Included accessories: Color-coded (green) tile bridge, UL listed conduit clamp and paint shield.
