GQX-3102 Dual 31-Band Equalizer

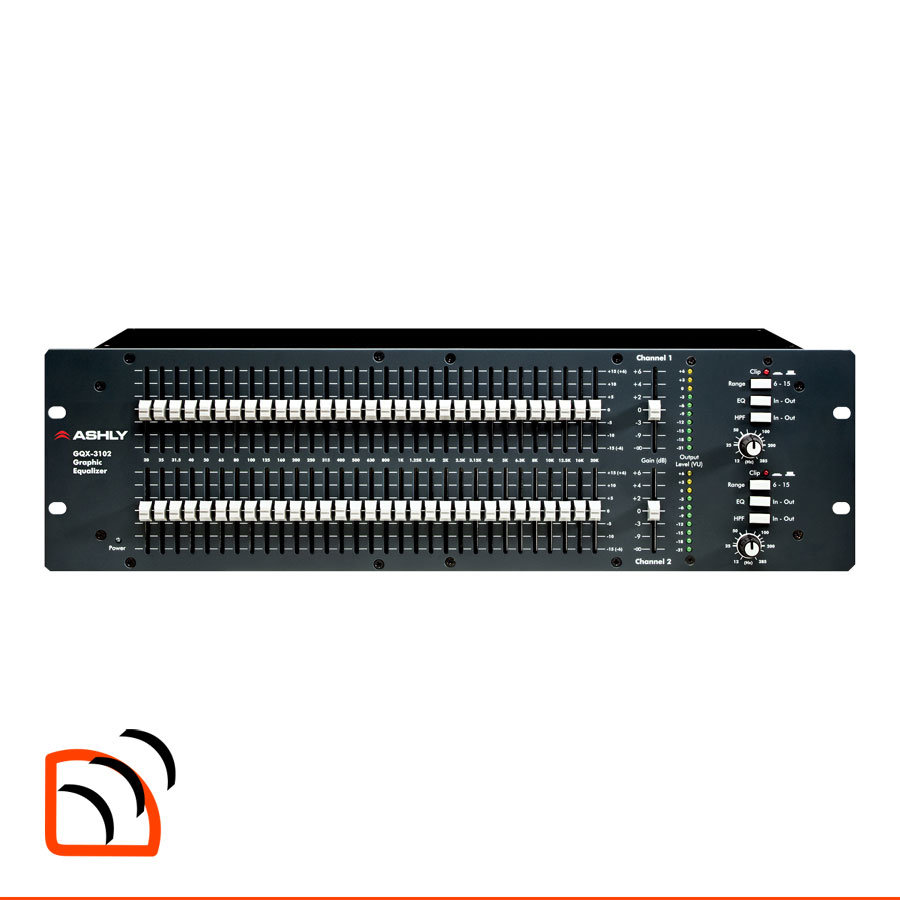

The Ashly GQX-3102 is a professional equalizer that functions as a high-precision sound controller, featuring two channels of 31-band 1/3-octave EQ, a tunable high-pass filter circuit, switch-selectable cut or boost of either 6 dB or 15 dB, along with 10-segment, two-color LED level meters and clip indicators. Ashly EQs are widely regarded as the go-to analogue processors for concert sound systems and commercial professional installations.

The full-throw 45 mm faders on the GQX-3102 use durable metal shafts, with the center-detented position serving as an on/off switch for each filter. This design helps minimize noise levels when a filter band is not engaged, ensuring clean and controlled audio performance.
