nX Multi-Mode Amplifiers

Ashly Audio nx Amplifiers Hero Image 1000px

NX Multi-Mode Amplifiers are designed for your most demanding installations.

NX amplifiers are trust-worthy, power amplifiers that install and configure into virtually any architecture and sound environment.

What is Multi-Mode?

NX Amplifiers feature Selectable Outputs on each channel so you can connect to virtually any speaker. Select Low Impedance (2, 4, and 8 Ohm), or Constant Voltage (70V or 100V).

Choose the model that fits your system design.

Start with a 2 or 4-channel nX Series base model and build your way up. Choose from 36 model configurations, available from 75 to 3000 Watts per channel.

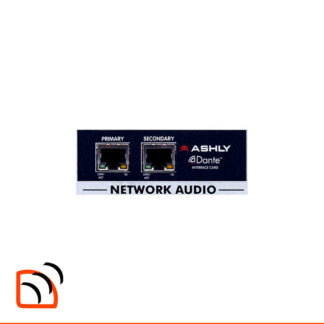

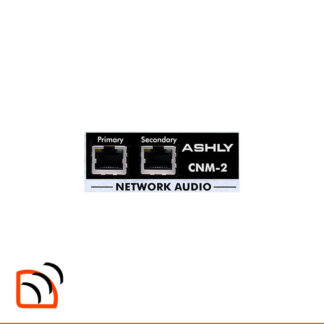

The nXe Series adds Ethernet control, event scheduler, preset recall, AUX outputs and much more. Add factory options like Dante® or CobraNet® for network audio integration.

The nXp Series has all the features of nXe, adding Protea™ DSP and swept load impedance analysis.

Below is an example of a fully-loaded NXP3.04 with Dante®.

Ashly nXp 3.0 Amplifier Fully Loaded rear Image

Power Ratings

Model4Ω (Br)8Ω (Br)25V70V100V
nX 3.03,000W2,000W1,250W6,000W4,000W-2,450W1,250W
nX 1.51,500W1,500W1,250W3,000W3,000W-1,500W1,250W
nX 800800W800W800W1,600W1,600W-800W800W
nX 400400W400W400W800W800W-400W400W
nX 150150W150W150W300W300W150W150W150W
nX 7575W75W75W150W150W75W75W75W

Max Output Power: perChannel, Low-Ω Output, All Channels Driven

Ashly nXp Amplifier Series 1U Hero Image

Downloads

SeriesModelsData SheetManual
nX3.0, 1.5, 800, 400DOWNLOADDOWNLOAD
nX150, 75DOWNLOADDOWNLOAD
nXe3.0, 1.5, 800, 400 + EthernetDOWNLOADDOWNLOAD
nXe150, 75 + EthernetDOWNLOADDOWNLOAD
nXp3.0, 1.5, 800, 400 + Protea DSPDOWNLOADDOWNLOAD
nXp150, 75 + Protea DSPDOWNLOADDOWNLOAD

Models

ModelsStandard
(2-Ch)
Ethernet
(2-Ch)
Protea
(2-Ch)
Standard
(4-Ch)
Ethernet
(4-Ch)
Protea
(4-Ch)
nX3.0 (2U)nX 3.02nXe 3.02nXp 3.02nX 3.04nXe 3.04nXp 3.04
nX1.5 (2U)nX 1.52nXe 1.52nXp 1.52nX 1.54nXe 1.54nXp 1.54
nX800 (2U)nX 8002nXe 8002nXp 8002nX 8004nXe 8004nXp 8004
nX400 (2U)nX 4002nXe 4002nXp 4002nX 4004nXe 4004nXp 4004
nX150 (1U)nX 1502nXe 1502nXp 1502nX 1504nXe 1504nXp 1504
nX75 (1U)nX 752nXe 752nXp 752nX 754nXe 754nXp 754

*Click links for images and pricing information
